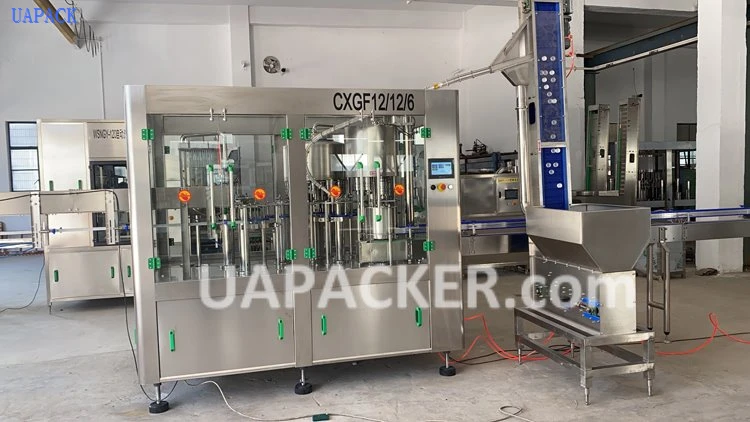

Purified Water Bottling Machine

This complete set of Purified Water Bottling Machine adopts bottleneck clamping transmission technology to realize automatic washing, filling and capping. Most of the components of the electrical system adopt famous brand advanced products. Every mechanical element in contact with the liquid is made of high-quality stainless steel. It has the advantages of good wear resistance, high stability and low failure rate, and the quality of the equipment has reached the international advanced level.

1. It adopts the air-feeding bottle and the direct connection technology of the moving wheel; cancels the screw and the conveying chain, which makes the change of the bottle shape easier.

2. The bottle transmission adopts the bottle neck clamping technology, the bottle shape change does not need to adjust the height of the equipment, only need to replace the relevant bending plates, wheels and nylon parts.

3. The specially designed stainless steel bottle washing machine clamp is durable and does not touch the screw position of the bottle mouth to avoid secondary pollution.

4. High speed and large gravity flow valve filling valve, fast filling speed, accurate filling and no leakage.

5. The spiral descends when the bottle is discharged, and there is no need to adjust the height of the conveyor chain to change the shape of the bottle.

6. The main engine adopts advanced PLC automatic control technology, and the key electrical components are from well-known companies such as Japan and France Schneider

Washing Part

The bottle washing process adopts a spring clamp, and the empty bottle can be turned 180° along the conveying track, and the bottle is washed twice inside and outside, and the bottle washing efficiency is high.

The washing machine adopts the original double-opening bottle clamp, which locks the bottle neck. The material of the bottle clamp is SUS304, which is hygienic and durable.

The bottle clip is equipped with a high-efficiency spray head. The 15° jet of water droplets ensures that all sides of the bottle can be washed and saves water.

Made of high quality stainless steel.

The bottled water filling machine is equipped with an anti-blocking bottle device.

Filling Part

The PET bottle liquid bottle filling machine has a reasonable filling structure design, sanitary dead corners, and stable equipment operation. It can control materials from the bottleneck, and the control accuracy is within ±2mm (subject to the bottle type design). The filling valve material is SUS304. The filling system has automatic liquid level control. The filling valve lifts, and the filling valve starts filling after touching the bottleneck. Bottles are conveyed by wheels in the filling section.

Capping Part

The capping machine is the most precise part of the three-in-one machine, which has a great influence on the product stability and reliability of the capping machine. It has the following characteristics:

1) The introduction of advanced capping technology improves the stability and reliability of the capping machine. The screw cap adopts magnetic torque. The capping force can be adjusted steplessly. The capping force can also be fixed without damaging the bottle cap, and the capping is reliable.

2) In the screw cap part, a photoelectric control is installed. When there is no cap or the cap is broken, the machine will stop automatically.

Flow Chart

A. Bottle Production Line PET Resin-Injection Molding Machine-Blow Molding Machine-PET Bottle

B. Water treatment system raw water - pump - silica sand filter - carbon filter - water softener - reverse osmosis - ultraviolet sterilizer - ozone generator - finished water tank

C. Filling and packaging part Bottle unscrambler-air blower-bottle washing, filling and capping three-in-one machine-light inspection machine-drying machine-coding machine-labeling machine-packing machine-inventory

1. Tested and inspected in our workshop before delivery.

2. After one year of warranty, we will provide accessories with factory price.

3. Free spare parts: related vulnerable parts.

4. Provide technical guidance and process configuration teaching.

5. Assist in the design of product lines, factory buildings and provide turnkey projects.

6. Warranty period: one year from the date of installation or acceptance of the equipment, whichever comes first

Q: How to get the right equipment or production line for us?

A: Please tell us your needs, we can help you recommend or configure suitable equipment and production lines:

1. Production capacity per hour/day/month

2. Filling liquid: water, fruit juice, carbonated drinks, beer or other liquids

3. Bottle type: plastic bottle, glass bottle, can or other bottle types

4. Cap type: screw cap, crown cap, jar cap or other cap types

5. It is best to provide raw water quality report for water treatment

Q: What should I do if I don't have any ideas about the production line I'm building? I just want to open a factory and do business.

A: Don't worry about this; you can tell us:

1. The exact product you want to produce;

2. What is the approximate budget for the production line? If there is no clear budget for opening a factory, I will send you the mainstream machines or production line configurations of our factory for your reference;

3. We will help to design everything, including machine layout and factory layout;

Q: This is my first time to cooperate with your factory. How can I trust your machine quality?

A: Before ordering machines or production lines, we will provide detailed quotations and information. Such as material thickness, brand, etc. We can also make a video call to show and introduce some of the existing equipment in our factory; you are also welcome to visit our factory to see the machinery and equipment.
