Semi Automatic Two Cavities Bottle Blower can blow plastic bottles for water, oil, juice, carbonated drinks and etc. One oven is matched with two blowers.Semi Automatic PET Bottle Blow Moulding Machine is small in size, productive and energy saving. Semi-Automatic Stretch Blowing Moulding Making Machine also fit to blow plastic bottles of various raw material in a big quantity.
FEATURES DESCRIPTION:
1. Bottle from 0.1L to 2L can be produced.
2. Using double-cavity blow mold, the output of 0.6L can reach 900BPH.

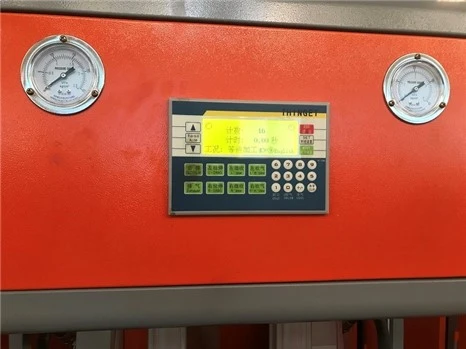

3. Advanced PLC control system, humanized panel.
4. Equipped with specially designed gas storage unit.

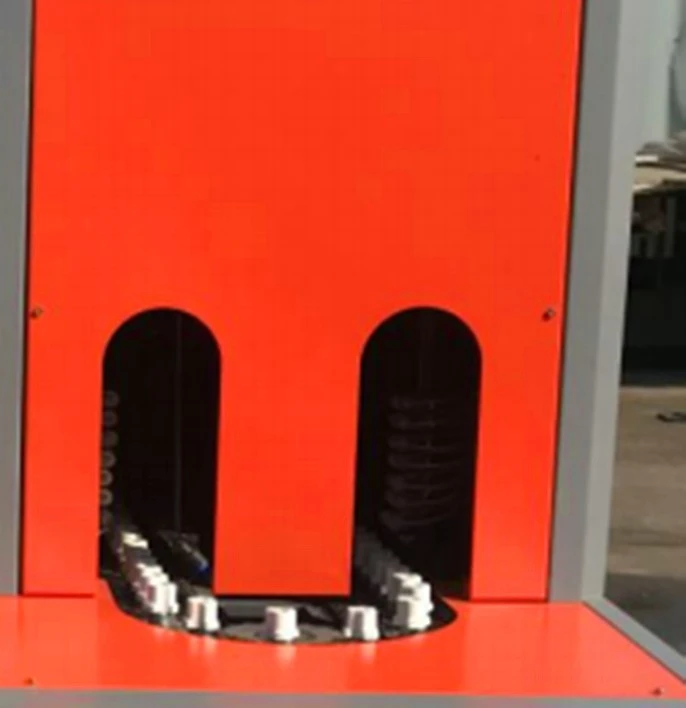

5. Using Infrared preform heaters.
6. Independent temperature control of different heating lamps, perfect preform heating effect.
7. The direction of the heating lamp can be adjusted to adapt to various preforms.
8. One person operates without special training.
9. Simple installation and debugging.
TECHNICAL PARAMETER:
|
General Information |
One Blower And One Heater |
Two Blower And One Heater |
|
Clamping Force |
12T |
|
|
Clamping Stoke |
220mm |
|
|
Max.Stretching Stroke |
360mm |
|
|
Number of Cavities |
2 Cavity |
2 Cavity 2Pcs |
|
Theoretical Output |
0.3-2.5L:500-800 BPH |
0.3-2.5L:900-1500 BPH |
|
Max.Mould Thickness |
250mm |
|
|
Mould plate size |
490x410mm |
|
|
Voltage Standard |
380v/3PH/50Hz or special order |
|
|
Total Power(Full Loaded) |
5-20KW |
10-25KW |
|
Min air compressor |
1.0m3/min 3.0Mpa |
1.6m3/min 3.0Mpa |
|
Net dimension & Weight(LxWxH) |
||
|
Blow Molding Machine |
160x60x175cm |
160x60x175cm 2Pcs |
|
Pre-heater |
450x72x150cm |
|
|
Net Weight |
1.8T |
2.6T |
|
Container |
||
|
Container Volume |
0.3-2.5L |
|
|
Neck Diameter Range |
8-60mm |
|
|
Container Diameter |
140mm |
|
|
Container Height |
380mm |
|

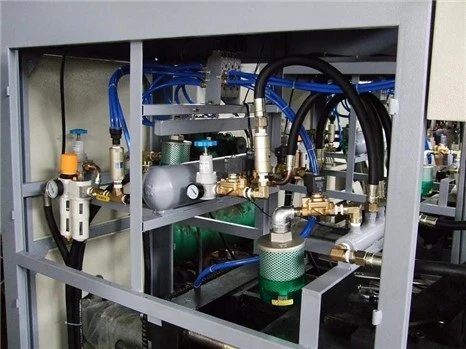

Semi Automatic Two Cavities Bottle Blower has a plenty of assistant units to increase the machine's performance. Such as air storage unit to keep the air pressure stable, grease-lubricating unit to reduce mechanical parts' wear and tear. And Semi-auto PET Blowing Machine's multi-utilization air entry unit to meet air compression by air high-pressure single entry mode and high-pressure & low-pressure double entry mode.
SERVICES:
1. Lifetime service for the machine.
2. Quick response all day long if customer face any problem on machine.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. Provide technician training for customer technician during installation service time.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
