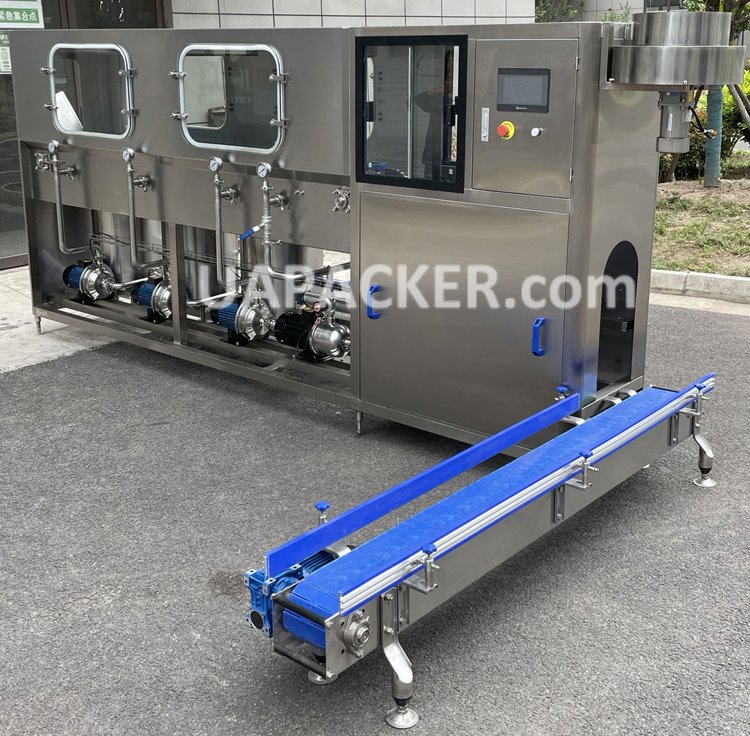

Barreled Water Filling Machine

Barreled Water Filling Machine is the core equipment of the 5-gallon barreled drinking water production line.

It is an ideal equipment for the production of mineral water and pure water. Made of high-quality stainless steel, corrosion-resistant, easy to clean. Both the inner and outer nozzles for washing buckets use parts and equipment from imported companies.

The 5 Gallon Pure Water Rinsing Filling Sealing Machine is compact in structure, high in working efficiency, stable and reliable, sensitive and accurate in sensing, and high in automation.

The main components and frame of the whole set of equipment are made of high-quality 304 stainless steel

The whole machine adopts intelligent screen operation, PLC control, and has a good man-machine interface interaction.

The overall use of domestic and foreign well-known brand pneumatic components and brand electrical appliances.

Equipped with an automatic cap unscrambling and cap feeding system, it can press the cap on the bottle completely and without error, and it is equipped with an automatic shutdown and automatic protection device for failure, which has the advantages of good safety and high stability.

Model: QGF-150

Number of filling heads: 1

Filling capacity: 3-5 gallons

Barrel size specification: φ276×490

Production capacity: 150 barrels/hour

Power supply: 380V, 50HZ

Main power consumption 2.5KW

Water consumption: filling 3T/H

Rinsing station: 12 channels (the 1st and 2nd channels are hot flushed with lye; the 3rd channel is drip-dried; the 4th and 5th channels are rinsed with disinfectant solution; the 6th and 7th channels are rinsed with reused water; Routes 9, and 10 are rinsed with water for the finished product. The 11th and 12th routes are drip-dried. The whole uses a 30-bit stainless steel chain.

Air source: pressure 0.4~0.6Mp

Air consumption 0.6 m³/min

Dimensions: 3800*900*1700

Structural type: motor drive mode, crawler type gland.

Weight: 600kg

Barreled Water Filling Machine is a fully automatic barrel-filling equipment with mechanical and electrical components in one.

1. We will arrange experienced technicians for commissioning and trial production, while making the equipment reach the rated production capacity of the line.

2. Our company provides technical training for customers. The buyer's technicians are trained to master the operation and maintenance, to adjust the process, and to deal with different failures.

3. We can design the machine according to your requirements, meanwhile we will give you our professional suggestion, as you know, we have been in this industry for more than ten years.

4. 12 Months guarantee and life-long technical support.

5. Provide good after-sales service, if you have any questions, please contact us.

Q1: May i know which payment will be accepted by your company?

A1: So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.

Q2: About the after-sale service, how can you solve the problems occurred of your overseas customer in time?

A2: The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.

Q3: After we placing an order, will you arrange the installation of the machine at present?

A3: All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be charged by you.
