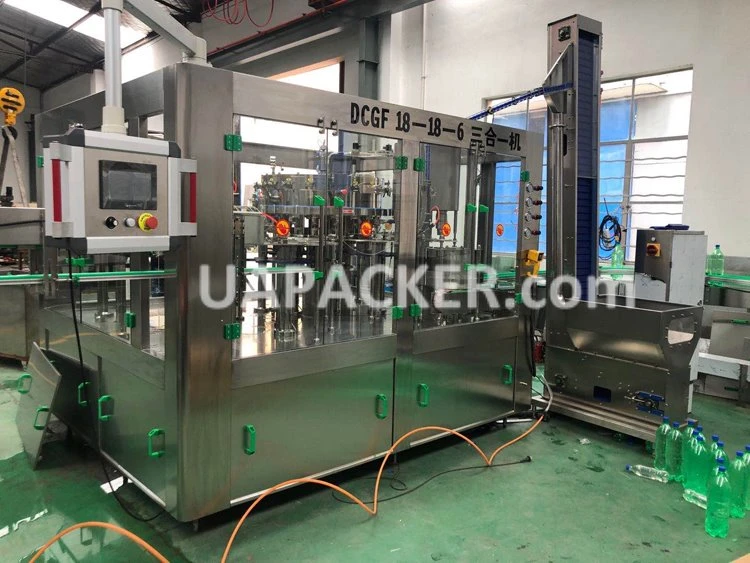

Automatic Soda Beverage Bottling Machine

Carbonated Beverage Bottling Machine is an isobaric filling machine that can produce 6000-7000 bottles of carbonated drinks, soft drinks, or cola drinks per hour. The empty PET bottle can be washed, filled, and sealed automatically inside the machine. The filling temperature for this machine is 4-6℃, which is suitable for cold soft drink filling. It adopts the current mainstream models rinsing filling capping 3 in 1 monoblock, with a compact structure, high configuration, and good performance. It also has an affordable price. These machines are designed to handle different sizes of bottles and can be customized according to customer requirements. This machine can be used not only for filling carbonated drinks but also for producing bottled water if customers need. One filling machine can produce two kinds of products, which can save the investment cost of the customer.

- Production Capacity: 6000-7000 BPH

- Suitable Container: PET/GLASS/ALUMINUM

- Bottle Diameter: 55-110mm

- Bottle Height: 156-310mm

- Bottle Volume: 0.25L - 2L

- Washing Nozzle: 24

- Filling Nozzle: 24

- Capping Nozzle: 8

- Voltage: 380v 50Hz

- Main Motor Power: 3kw

- Air Consumption: 0.7Mpa 0.6m³ per minute

- Washing water pressure: 0.25MPa

- Washing water consumption :1000kg/H

- Filling type: Isobaric filling type

- Filling Water Consumption: 3000-5000kg per hour

- Dimensions: 3860X2800X2610

- Weight: 6000kg

1. High-quality SUS 304 material ensures that the machine is durable and long-lasting.

2. The high-definition touch screen, Mitsubishi frequency converter, and PLC control system make the operation of the machine easy and efficient.

3. The machine can fill bottles with different capacities, which makes it versatile and flexible.

4. The high precision capping machine ensures that the filled carbonated beverage can be completely sealed.

5. One filling machine can produce two kinds of products, which saves the investment cost of the customer.

6. It is a stable carbonated beverage filling equipment that is very suitable for customers who pursue performance-to-price ratio and input-output ratio.

In summary, the Automatic Soda Beverage Bottling Machine is an efficient, reliable, and safe solution for your carbonated beverage bottling needs. It simplifies the bottling process while ensuring consistent and high-quality bottling results. Invest in this machine today and experience a significant increase in productivity and efficiency in your bottling operations.

1. What is a carbonated beverage filling machine?

A carbonated beverage bottling machine is a machine used for bottling carbonated beverages such as soda water, wine, beer, etc. It works by filling beverages into sterilized bottles, which are then sealed.

2. What are the main features of the carbonated beverage filling machine?

The main features of the carbonated beverage filling machine include high efficiency, accuracy, easy operation and low maintenance cost. It also has multiple filling chambers and a capping machine for sealing the bottles.

3. What is the average capacity of a carbonated beverage filling machine?

The average capacity of a carbonated beverage bottling machine ranges from 1,000 to 24,000 bottles per hour, depending on the size and type of machine.

4. How does the carbonated beverage filling machine ensure that the bottle is well sealed?

The carbonated beverage filling machine uses advanced sealing technology to ensure that the bottle is properly sealed. The machine also has a quality control system that monitors the sealing process to ensure the bottles are properly sealed.

5. How much maintenance does a carbonated beverage filling machine need?

Carbonated beverage bottling machines require very little maintenance. Routine maintenance includes cleaning the machine and replacing worn parts. The machine should also be inspected periodically to ensure it is functioning properly.

6. Can the carbonated beverage filling machine be customized to meet specific requirements?

Yes, carbonated beverage bottling machines can be customized to meet specific requirements. The machine can be adjusted to bottle different types of beverages and different bottle sizes. It can also be designed to automate certain processes to increase efficiency.

7. How does the carbonated beverage filling machine operate?

Carbonated beverage bottling machines can be operated by trained personnel. The machine is equipped with a control panel that allows the operator to adjust settings and monitor the performance of the machine.

8. What is the warranty period of the carbonated beverage filling machine?

The warranty period for carbonated beverage bottling machines is usually 1 year.

9. What should be considered when buying a carbonated beverage filling machine?

When purchasing a carbonated beverage filling machine, it is important to consider factors such as the machine's capacity, efficiency, maintenance costs and ease of operation. It is also important to choose a reputable manufacturer that provides high-quality technical support and after-sales service, and Uapacker is exactly such a manufacturer.
